> Seatbelt interlock relay, Thanks Dave Darling!
74ravenna
post Dec 20 2015, 11:30 AM
Post #1


Member
**

Group: Members
Posts: 471
Joined: 19-October 14
From: nh
Member No.: 18,032
Region Association: North East States



As the owner of a 74 1.8 that hasn't started in 32 years I replaced the fuel lines (Tangerine) the fuel pump (thanks wndsnd) and most of the vacuum lines, but when it came time to try and start it, I was getting nothing.
I would get some lights, the radio, horn and wipers but the engine wouldn't crank.
So today I took Dave Darlings advice to remove the Seatbelt Interlock Relay.
I did it more to get something done on the car for further on down the road when I intend on trying to get it to run.
Just for the heck of it I decided to hook up the battery and turn the key, VOILA!, the motor cranked!
It hasn't started yet but hearing the motor turn was a big relief and quite exciting.

Steve

User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Dec 20 2015, 09:50 PM
Post #2


914 Idiot
**********

Group: Members
Posts: 14,974
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California



Excellent, congrats on getting the next step!

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
North Coast Jim
post Jan 18 2016, 01:58 PM
Post #3


Member
**

Group: Members
Posts: 323
Joined: 11-December 15
From: Northern Ohio
Member No.: 19,450
Region Association: MidAtlantic Region



QUOTE(Dave_Darling @ Dec 20 2015, 10:50 PM) *

Excellent, congrats on getting the next step!

--DD


Are you just removing the Relay and leaving the wiring intact or are you fooling the system and rewiring and/or jumpering the sensors. The reason I ask is I'm working on a 74 2 liter that is a roller. The PO had butchered the wiring harness and I'm trying to set it straight. Area of concern that's left is the dreaded Seat Belt Warning Relay. Current tracks 64 and 65 are jumpered as well as 68 and 69. Pin 31 of the relay, ground, is partially connected.

I've got one ground wire that looks to go thru the fire wall bulkhead and head to the engine area but can't seem to locate it there. Argh.

Is there a Tech Brief that explains the Jumpering method to eliminate Selt belt warning. I can't locate anything on the site.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Jan 18 2016, 02:00 PM
Post #4


Custom Member
***************

Group: Members
Posts: 24,501
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States



There is nothing important except the two yellow wires that go from the ignition switch to the starter relay. Put those two together.

Rich
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
r_towle
post Jan 18 2016, 02:01 PM
Post #5


Custom Member
***************

Group: Members
Posts: 24,501
Joined: 9-January 03
From: Taxachusetts
Member No.: 124
Region Association: North East States



QUOTE(74ravenna @ Dec 20 2015, 12:30 PM) *

As the owner of a 74 1.8 that hasn't started in 32 years I replaced the fuel lines (Tangerine) the fuel pump (thanks wndsnd) and most of the vacuum lines, but when it came time to try and start it, I was getting nothing.
I would get some lights, the radio, horn and wipers but the engine wouldn't crank.
So today I took Dave Darlings advice to remove the Seatbelt Interlock Relay.
I did it more to get something done on the car for further on down the road when I intend on trying to get it to run.
Just for the heck of it I decided to hook up the battery and turn the key, VOILA!, the motor cranked!
It hasn't started yet but hearing the motor turn was a big relief and quite exciting.

Steve

Congrats, and if you need help, or parts, let me know.

Rich
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
74ravenna
post Jan 18 2016, 04:18 PM
Post #6


Member
**

Group: Members
Posts: 471
Joined: 19-October 14
From: nh
Member No.: 18,032
Region Association: North East States



Are you just removing the Relay and leaving the wiring intact or are you fooling the system and rewiring and/or jumpering the sensors.


For now just removing the relay and leaving the wiring intact.


Congrats, and if you need help, or parts, let me know.

Thanks Rich. I've removed the fuel tank (again!) to get it cleaned, should have it back in a day or two so hopefully I'll have it back together this weekend an we'll go from there.


Steve
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
NS914
post Jan 19 2016, 02:15 PM
Post #7


Member
**

Group: Members
Posts: 198
Joined: 9-June 09
From: Dartmouth, Nova Scotia
Member No.: 10,455
Region Association: Canada



Hi Steve,
Would you ever forward the information re Seatbelt interlock relay from Dave Darling....I too want to remove or minimize...the PO of my car, a '74 1.8 also butchered the wiring and I have been going through it SLOWLY...lol.

Much thanks, Grant
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Series9
post Jan 19 2016, 03:06 PM
Post #8


Lesbians taste like chicken.
*****

Group: Members
Posts: 5,444
Joined: 22-August 04
From: DeLand, FL
Member No.: 2,602
Region Association: South East States



I would really like to meet the Kraut who was responsible for including the starter in the seat belt wiring.... (IMG:style_emoticons/default/chair.gif)


That gets bypassed on every 914 that comes through here.


User is offlineProfile CardPM
Go to the top of the page
+Quote Post
74ravenna
post Jan 19 2016, 03:47 PM
Post #9


Member
**

Group: Members
Posts: 471
Joined: 19-October 14
From: nh
Member No.: 18,032
Region Association: North East States



QUOTE(NS914 @ Jan 19 2016, 03:15 PM) *

Hi Steve,
Would you ever forward the information re Seatbelt interlock relay from Dave Darling....I too want to remove or minimize...the PO of my car, a '74 1.8 also butchered the wiring and I have been going through it SLOWLY...lol.

Much thanks, Grant



Sounds like you have a 74? If so, those are for the "door ajar" buzzer, and for the Dreaded Seatbelt Interlock Relay. The relay can AND SHOULD be disarmed by splicing the two fat yellow wires that run to it together. The relay itself can be discarded or reinstalled, whatever floats your boat, at that point.

--DD





So do I understand this correctly?
I splice the yellow/red stripe and yellow/white stripe together and tape off the rest of the wires?

ThanksAttached Image

Hi Grant,

Here is the thread with Dave's instructions.
It was a simple fix. There are only two large yellow wires so you can't miss.


Steve
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
JeffBowlsby
post Jan 19 2016, 04:32 PM
Post #10


914 Wiring Harnesses
*****

Group: Members
Posts: 8,439
Joined: 7-January 03
From: San Ramon CA
Member No.: 104
Region Association: None

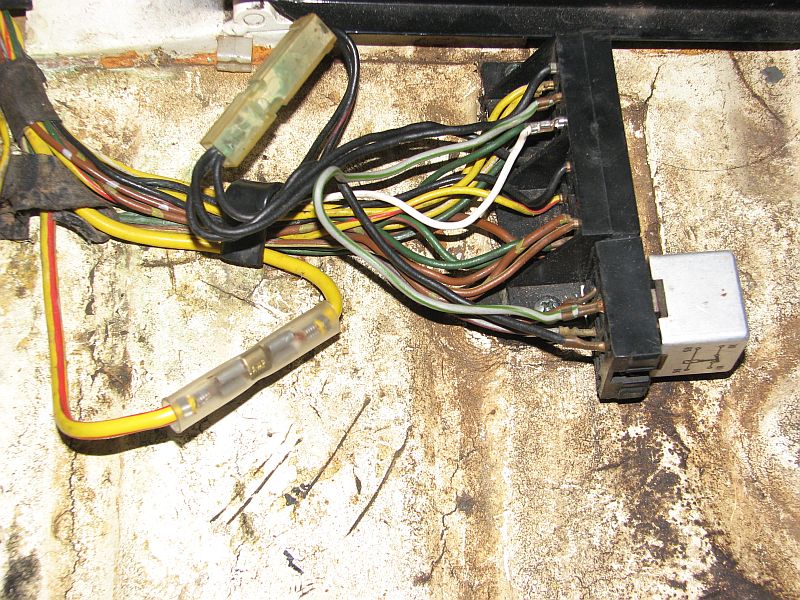

(IMG:style_emoticons/default/smile.gif)


Attached image(s)
Attached Image
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Dave_Darling
post Jan 19 2016, 06:00 PM
Post #11


914 Idiot
**********

Group: Members
Posts: 14,974
Joined: 9-January 03
From: Silicon Valley / Kailua-Kona
Member No.: 121
Region Association: Northern California



QUOTE(Series9 @ Jan 19 2016, 01:06 PM) *
I would really like to meet the Kraut who was responsible for including the starter in the seat belt wiring.... (IMG:style_emoticons/default/chair.gif)


You'll want to talk to the US legislature and the DOT from back in the early 70s. It was a legal requirement to be able to import cars into the US... Fortunately, it was (close to) a one-year-only deal.

--DD
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
dangrouche
post Feb 21 2016, 12:36 AM
Post #12


dangrouche
***

Group: Members
Posts: 550
Joined: 1-May 04
From: San Francisco Bay Area
Member No.: 2,012
Region Association: None



Interior light functionality desired. how to ??
QUOTE(Jeff Bowlsby @ Jan 19 2016, 02:32 PM) *

Interior light functionality needed.
I have a 74 2.0 liter and my seat belt interlock relay bypass was completed as in the above picture and the seat belt relay removed. My light switch on both doors are functional and make that smaller silver relay click each time either door opens. I read on this board that I needed to bypass a couple of wires on the seat belt relay side to make it so that my interior bulb illuminates whenever either door is opened. I think Clay Perrine wrote that info. Does anyone know which two leads I need to jumper on that interlock relay ??
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
0396
post Aug 2 2016, 06:52 PM
Post #13


Advanced Member
****

Group: Members
Posts: 2,046
Joined: 13-October 03
From: L.A. Calif
Member No.: 1,245
Region Association: Southern California



Quick question for the brain trust, where's the relay located?
I might have an issue with mine and would like to remove/ unplug it vs taking the seat out.
Thanks in advance for your assistance.
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
Jeffs9146
post Aug 2 2016, 06:53 PM
Post #14


Ski Bum
****

Group: Members
Posts: 4,062
Joined: 10-January 03
From: Discovery Bay, Ca
Member No.: 128



Under the passenger seat
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
0396
post Aug 2 2016, 06:54 PM
Post #15


Advanced Member
****

Group: Members
Posts: 2,046
Joined: 13-October 03
From: L.A. Calif
Member No.: 1,245
Region Association: Southern California



QUOTE(Jeffs9146 @ Aug 2 2016, 05:53 PM) *

Under the passenger seat


Thanks you! (IMG:style_emoticons/default/piratenanner.gif)
User is offlineProfile CardPM
Go to the top of the page
+Quote Post
